2G11 pl led tube; Retrofit 2G11 PL

FOB Reference Price:Get Latest Price
$4.00 - $12.00 / Piece | 60 Piece/Pieces (Min. Order)
Lamp Power(W):
25
Emitting Color:
3000K 4000K 5000K 6000K
Report Suspicious Activity
Overview
Quick Details
Warranty(Years):
3
Input Voltage(V):
AC100-277V
Lamp Luminous Efficiency(lm/w):
130
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
30000
Lamp Body Material:
Aluminum Alloy
IP Rating:
ip33
Certification:
CE, EMC, LVD, ROHS
Place of Origin:
Taiwan, China
Brand Name:
BEST ECGsmart 2G11
Model Number:
2G11
Application:
Office
Light Source:
LED
Color Temperature(CCT):
3000-6000K
LED Light Source:
Epistar SMD2835
Lamp Luminous Flux(lm):
4000
Compatible:
Electronic Ballast/ECG
LED 2 G11 EB 9W Lamps:
Replace CFL 18w
LED 2 G11 EB 12W Lamps:
Replace CFL 24w
LED 2 G11 EB 18W Lamps:
Replace CFL 36w
LED 2 G11 EB 20W Lamps:
Replace CFL 40w
lifetime:
50000 hours lifespan
Item Type:
Tube Lights
Supply Ability
Supply Ability:
3000000 Piece/Pieces per Month 2G11 LED PL
Packaging & Delivery
Packaging Details
2G11 LED PL
LED 2G11 EB 9W Lamp: 60 PCS/BOX; 23cm*22cm*26cm; 4.5 kg
LED2G11 EB 12W Lamp: 60 PCS/BOX; 28.5cm*22cm*26cm; 5.3 kg
LED2G11 EB 18W Lamp: 60 PCS/BOX; 32cm*22cm*26cm; 6.2 kg
LED2G11 EB 20W Lamp: 60 PCS/BOX; 32cm*22cm*26cm; 6.2 kg
LED G24 EB 9W Lamp: 60 PCS/BOX; 35cm*22cm*26cm; 7.5 kg
Port
Shenzhen port/Kaohsiung
Video Description
Specification
Model
Voltage (Depending on Ballast)
Base
CRI
CCT (K)

Watt
(W)
Bean Angle

Note
LED 2 G11
EB 9W Lamps
100-277, 347
2G11
82
3000K-6000K
9W
180
Replace compact fluorescent lamp 18w
LED 2 G11
EB 12W Lamps
100-277, 347
2G11
82
3000K-6000K
12W
180
Replace compact fluorescent lamp 24w
LED 2 G11
EB 18W Lamps
100-277, 347
2G11
82
3000K-6000K
18W
180
  Replace compact fluorescent lamp 36w

LED 2 G11
EB 20W Lamps
100-277, 347
2G11
82
3000K-6000K
20W
180
Replace compact  fluorescent lamp 40w

BEST 2G11 Direct Replacement

 Biax L Series

MASTER PL-L

 DULUX L

Product Description

Product Details:

    BEST EB 2G11(Electronic Ballast/ECG) lamp series are designed to directly replace compact fluorescent lamps (CFLs) . Just plug and play. No need to rewire or bypass the ballast.

BEST also owns unique patent for LED retrofit products. There is "No LED Driver" inside the lamp, which can provide ultra high reliability, a long 50,000-hour lifespan, maintenance-free, energy-saving operation and higher performance, as well as instant-on capabilities.


Safety in LED Tube:

Over-current and overheat fuse protection.
Only passive electronic components on PCB.
All of electronic parameters are the same as CFL.
Without built-in driver.
No active components on PCB, such as capacitors or inductors.

Not cause for Electric arc/spark High temperature.


Reliability in LED Tube:

Manufactured with LM 80 qualified LED light engine only .
Fig. 1,2 & 3 shows that LED chip at 55°C has the best performance and can be guaranteed 60,000 hours life time.
The temp of LED chip in our design is lower than 55 °C to ensure 60,000 hours life time.

Reliability in LED Tube:

Our patented LED lamp
No capacitor.
No inductor.
Fuse protection for overheat and overcurrent .

ECO Design

ECO Design

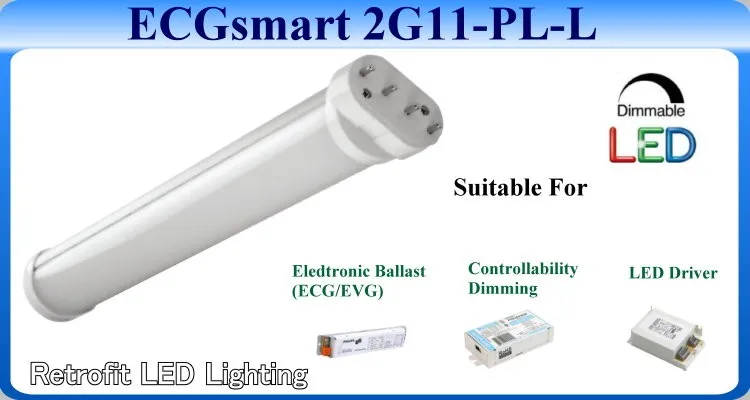

Based on amazing and unique ECG compatibility technology, the ECGsmart series retrofit tube can also be used in dimmable LED driver without any modification.
When users want to go for intelligent lighting or the ballasts are out of order, the ECGsmart or ECGall T5 retrofit LED tube can still work with LED drivers to extend the lifespan of luminaire.

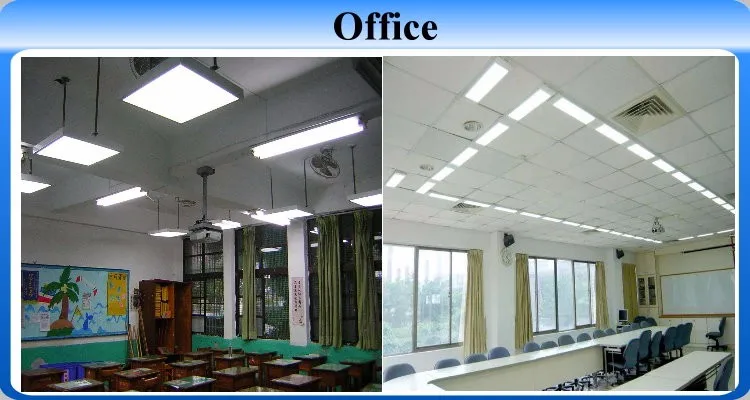

Applications
Company Information

About us

The BEST owns unique patent for LED retrofit products which can directly replace traditional ones, including low pressure discharge lamps ,HID and relevant products.
We will actively confront challenges and transform them into opportunities by devoting technology innovation in LED. In the future, our company will go for solar energy products.

Core technology:
Compatible low pressure discharge luminaire(lamp)
Fluorescent tube(FL) T5/T8
Compact fluorescent lamps (CFL) G23/24/ 2G11.
Circular shape lamp G10-q/2GX13
Compatible HID luminaire(lamp)
mercury-vapor lamp, Metal halide lamps , high pressure sodium lamp(HPS), Low pressure sodium lamp, high pressure mercury vapour lamp, etc.

Product feature:
High fractional energy saving, Best ROI
Direct replacement and convenient installment.
Reduction on man-hour(s) and cost of maintenance.
High reliability.
Long life span.

The BEST positions ourselves as professional and integrated service company , so we can provide High Quality products to meet and even exceed customers’ needs and expectations. Even though globalized competitions among LED industry have brought great deal of challenges, the BEST has the faith to deal with those challenges and transform them into opportunities by devoting technology innovation in LED and solar energy products as well as building up close partnerships with customers. Our total solution services are fully customer oriented. Because our company is like no others, we have expected ourselves to be a leader in global lighting industry.

Our service:
ODM /OEM
ODM product solution to customer’s Electrical ballast
Semi-Knocked Down(SKD)
turn-key solution
